EN 1.4418, DIN X4CrNiMo16-5-1, S165M martensitic stainless steel
1.4418 Stainless is a martensitic stainless steel specially designed for those applications requiring high mechanical properties combined with improved corrosion resistance relative to traditional martensitic steels.
Typical applications can be found in fields like automotive, industrial, and pressurized fuel systems for direct injected engines, fittings on fuel rails, fuel pumps, and injector bodies.
| Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N |
| 1.4418, X4CrNiMo16-5-1 | ≤0.06 | 0.70 | ≤1.50 | 0.040 | 0.015 | 15.0 to 17.0 | 0.80 to 1.50 | 4.0 to 6.0 | ≥0.020 |
| Material no. | Hot forming | Heat treatment symbol | Annealing | Quenching | Tempering | |||
| 1.4418, X4CrNiMo16-5-1 | Temperature ℃ | Type of cooling | Temperature ℃ | Type of cooling | Temperature ℃ | Type of cooling | Temperature ℃ | |
| 1150 to 900 | air | +A | 600 to 650 | furnace, air | - | - | ||
| +QT760 | - | - | 950 to 1050 | oil, air | 590 to 620 | |||
| +QT900 | - | - | 920 to 1050 | oil, air | 550 to 620 | |||
Product forms
Forgings acc. to drawings, bars, discs and rings on request.

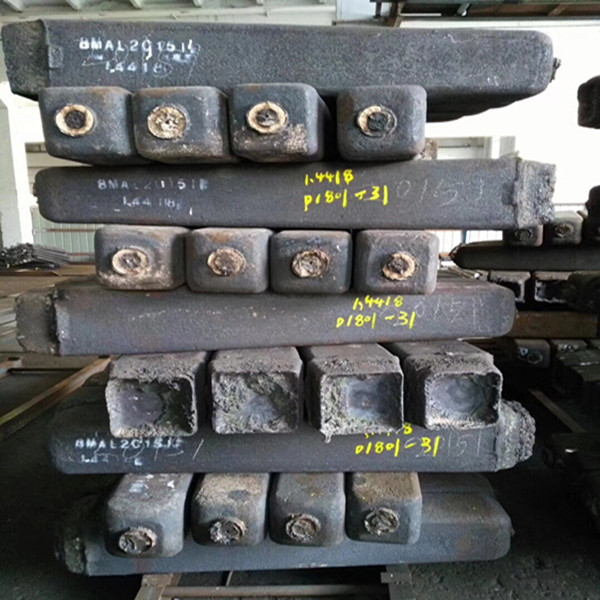

Blocks / flat, sawn from forged primematerial. Sizes on request.

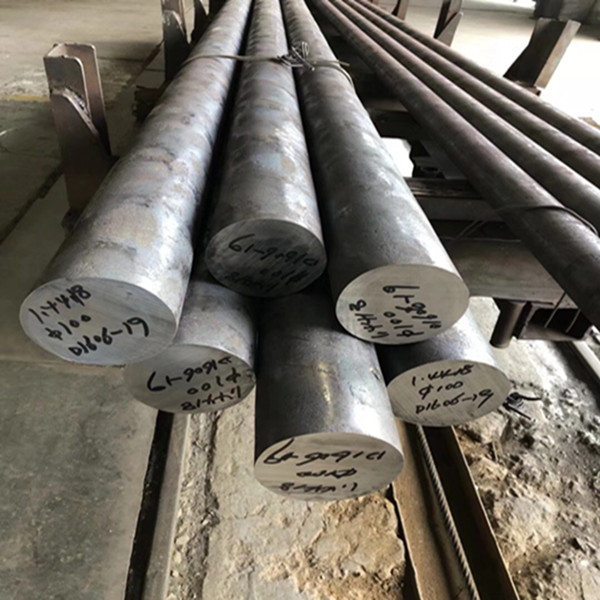

Picture for 1.4418 stainless steel round bars, hot forged, Dia 100mm, QT900
